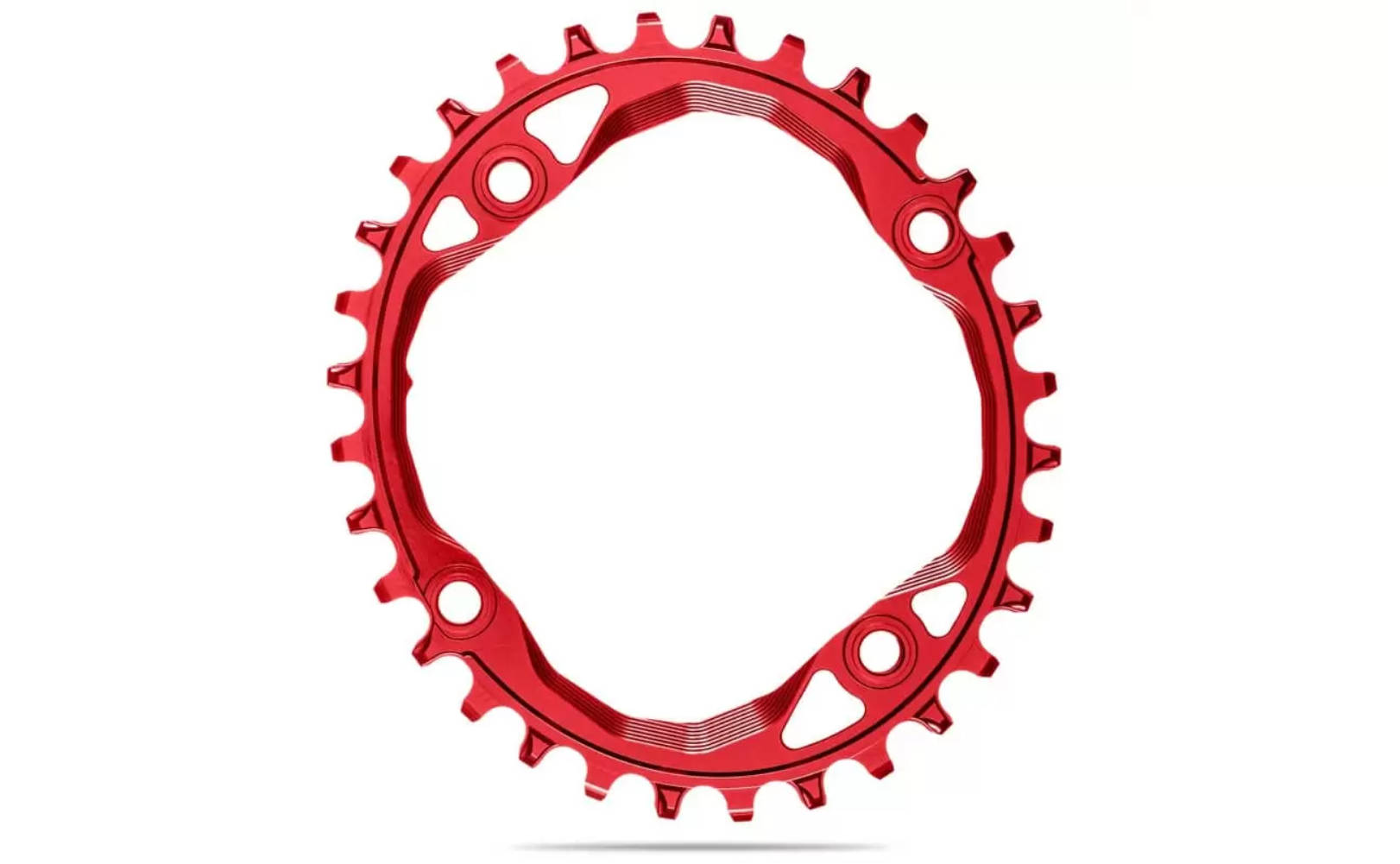

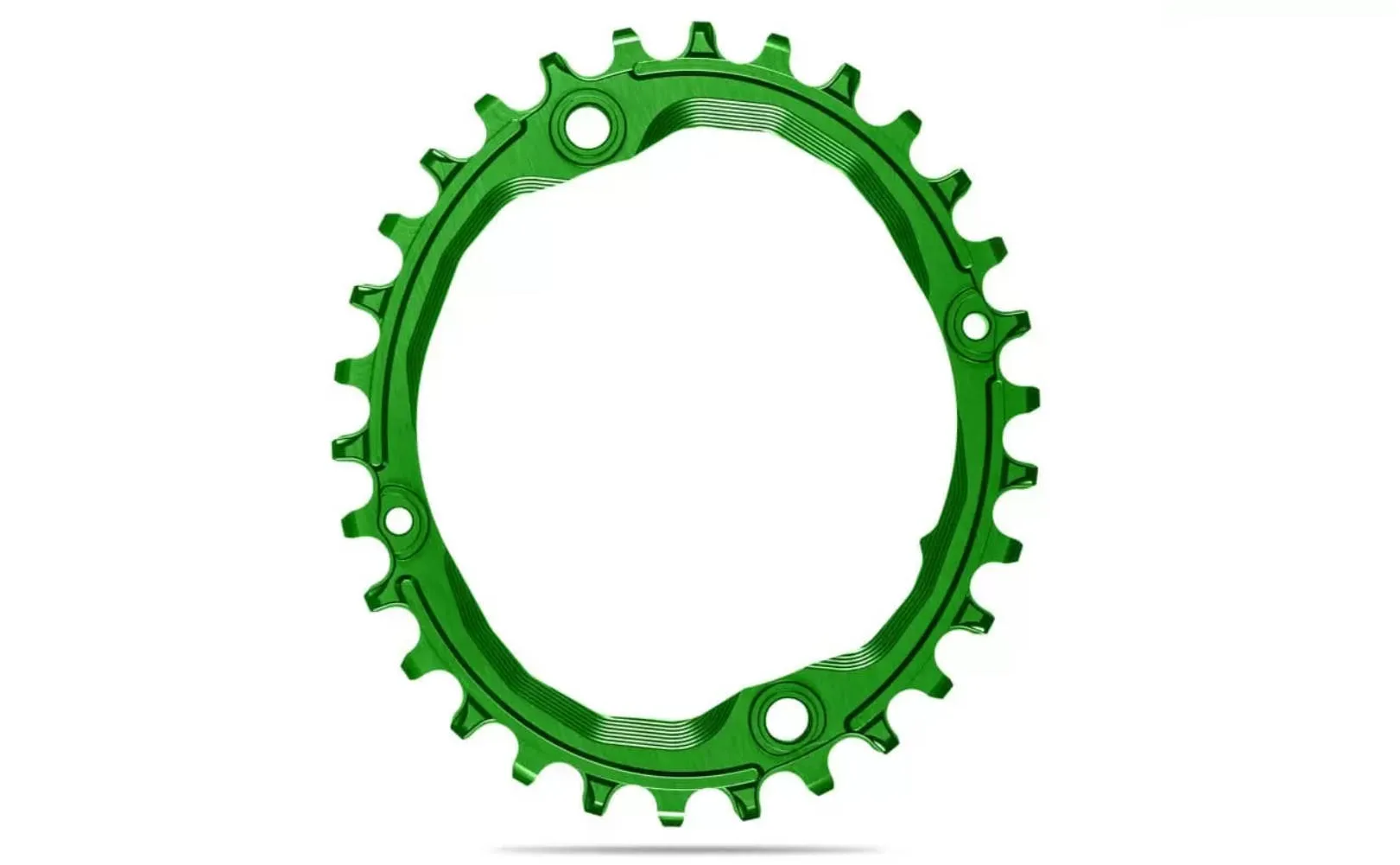

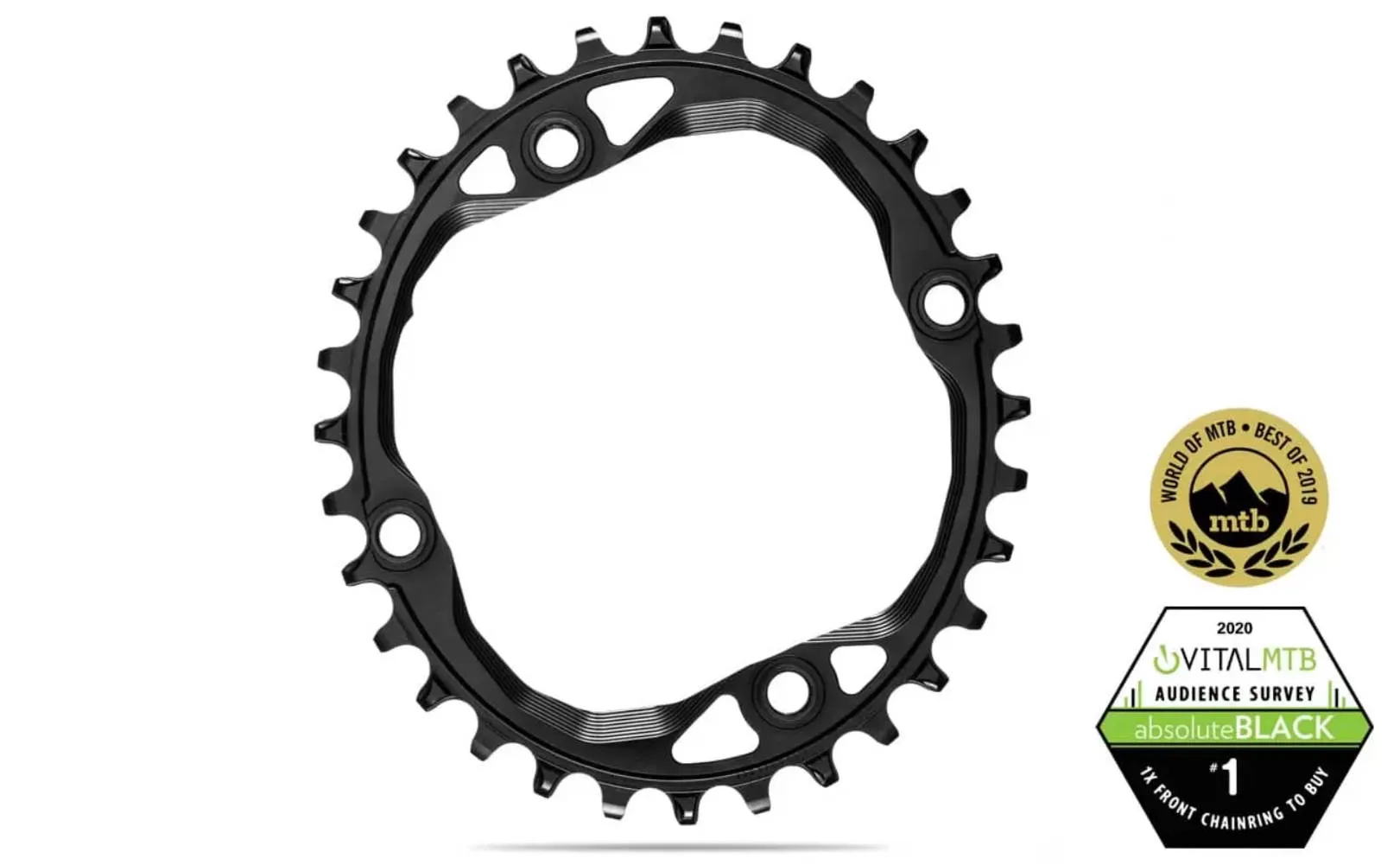

absoluteBLACK Oval 1X 104 BCD Premium Chainring

absoluteBLACK Premium 1X 104 & 64bcd Oval traction narrow wide chainrings are designed for any cranks that use 104bcd mounting interface. This is the most common mounting standard for Shimano and other 4 arm cranks. It is the most Premium oval chainring on the market with scientifically proven performance gains. 10/11/12spd compatible.

Specification

• Size (Mass +/-1g)

  64BCD: 26T (35g), 28T (42g)

  30T 104BCD: 36g – comes with special bolts and spacers

  104BCD: 32T (41g), 34T (44g), 36T (53g)

• Colour

  Black, Red, Green

• Compatibility

  All cranks with 4x 104BCD interface. That means Shimano XT / Zee / Deore / SLX / XTR, Race Face Sixc, RF Ride, RF Chester, RF Respond, FSA, E13 and many more. 9, 10, 11 and 12spd Eagle compatible.

• Material

  cnc machined 7075 Txxx Aluminum. Long-lasting construction. Type II anodizing

• Chainline

  26&28T (64bcd) – 46mm ; 30T – 48mm ; 32T – 48.5mm ; 34&36T – 50mm

• Mounting Holes

  4 x 104mm BCD (for 32T ring, bolts should be min 6mm long)

• Ovality

  Optimized to each size separately. Range: 10.2-14.4% and Timing of 110.5-116.3° after TDC (top dead center) Patent Pending

Important

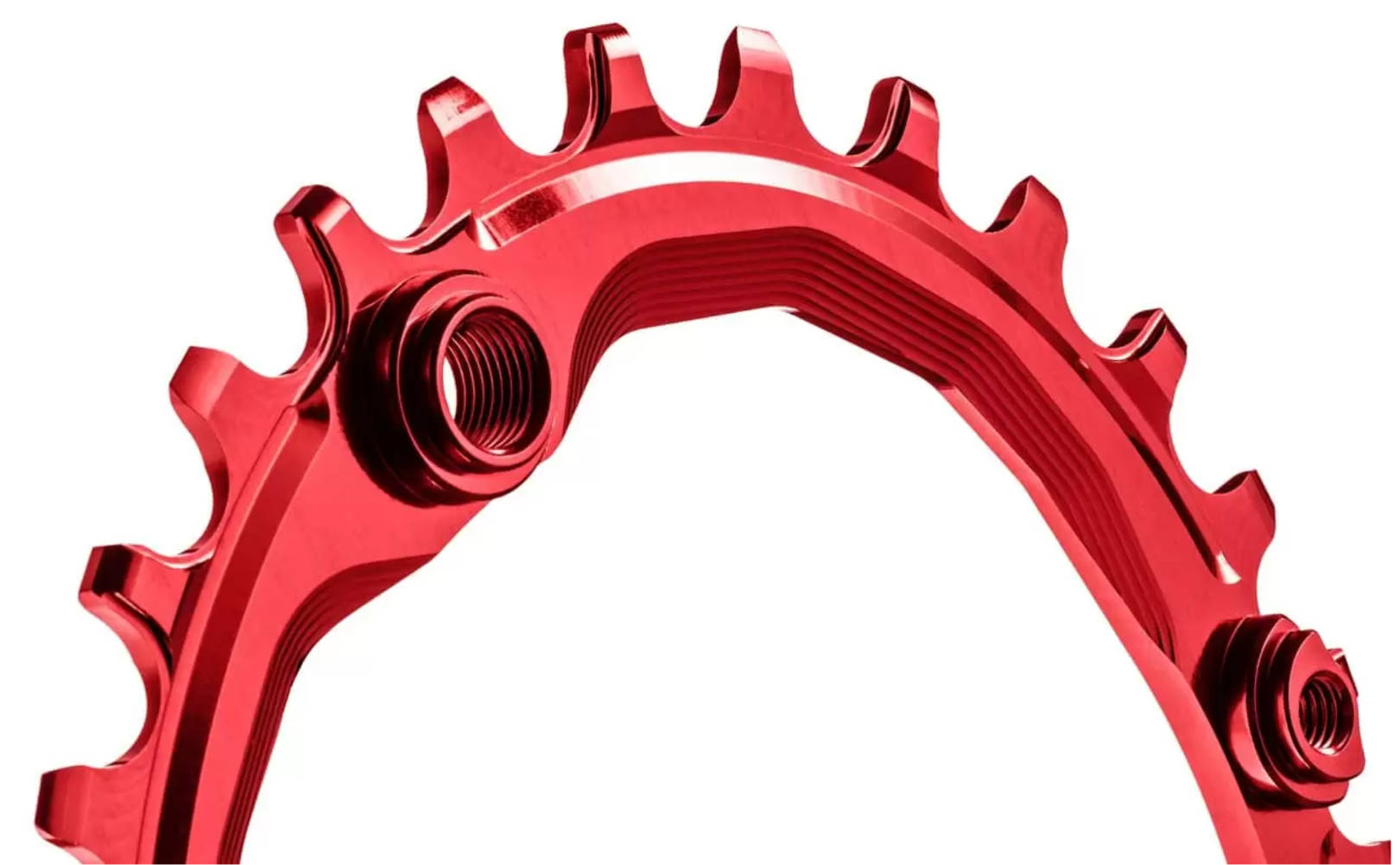

*32T chainring has build-in 2mm spacers and threaded holes (M8x0.75) to accommodate this size on spider. Other sizes have regular 10mm holes.

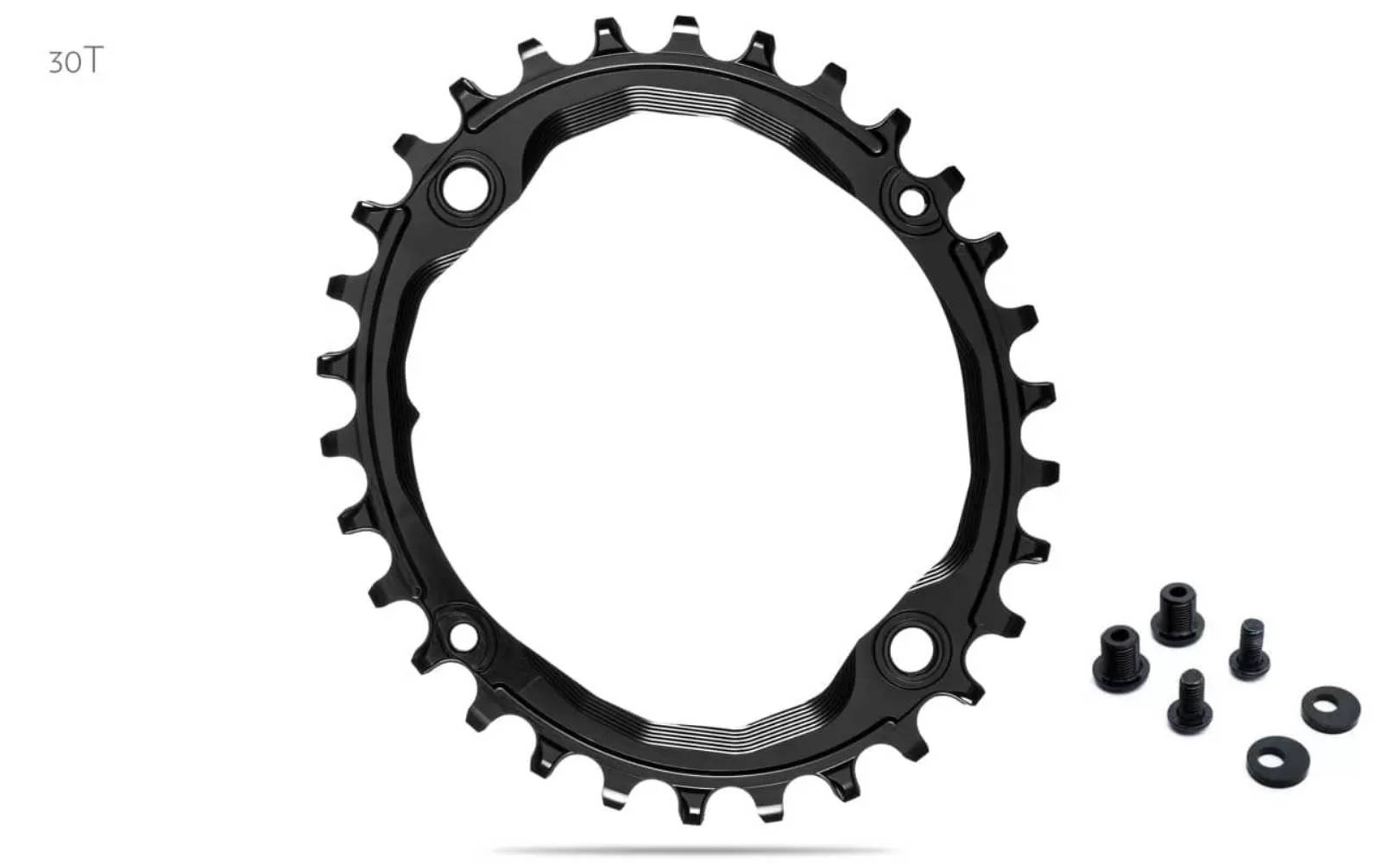

*30T chainring has build-in 2.5mm spacers and threaded holes (M8 / M5) to accommodate this size on spider. It also comes with bolts and spacers in the package: 2x M8 aluminium bolts T30 torx, 2x M5 steel bolts T25 torx and 2x eccentric spacers. This is a patent pending solution.

* 30T oval chainring will not fit some power meters, like SRAM Quarq Dzero 104 BCD. If you are unsure whether it will fit your power meter, please contact the absoluteBlack customer service team.

If you wish to check for frame clearance with new oval ring, below you can find measurement of biggest dimension of the oval (tip to tip of tooth):

26T: 118mm ; 28T: 127mm ; 32T: 143mm ; 34T: 151mm ; 36T: 159mm

ADVANTAGES OF ABSOLUTE BLACK SPECIAL DIRECT MOUNT NARROW WIDE CHAINRINGS:

*We mastered our oval chainrings to perfection, so you can get best possible advantage from the oval/elliptical shape.

*Finest design to provide excellent weight to strength ratio

*One of a kind special oval shape (Patent Pending)

*Greatly improves traction and climbing abilities

*Unique Patent Pending narrow-wide teeth profiles to keep your chain in place for minimum 12 months!

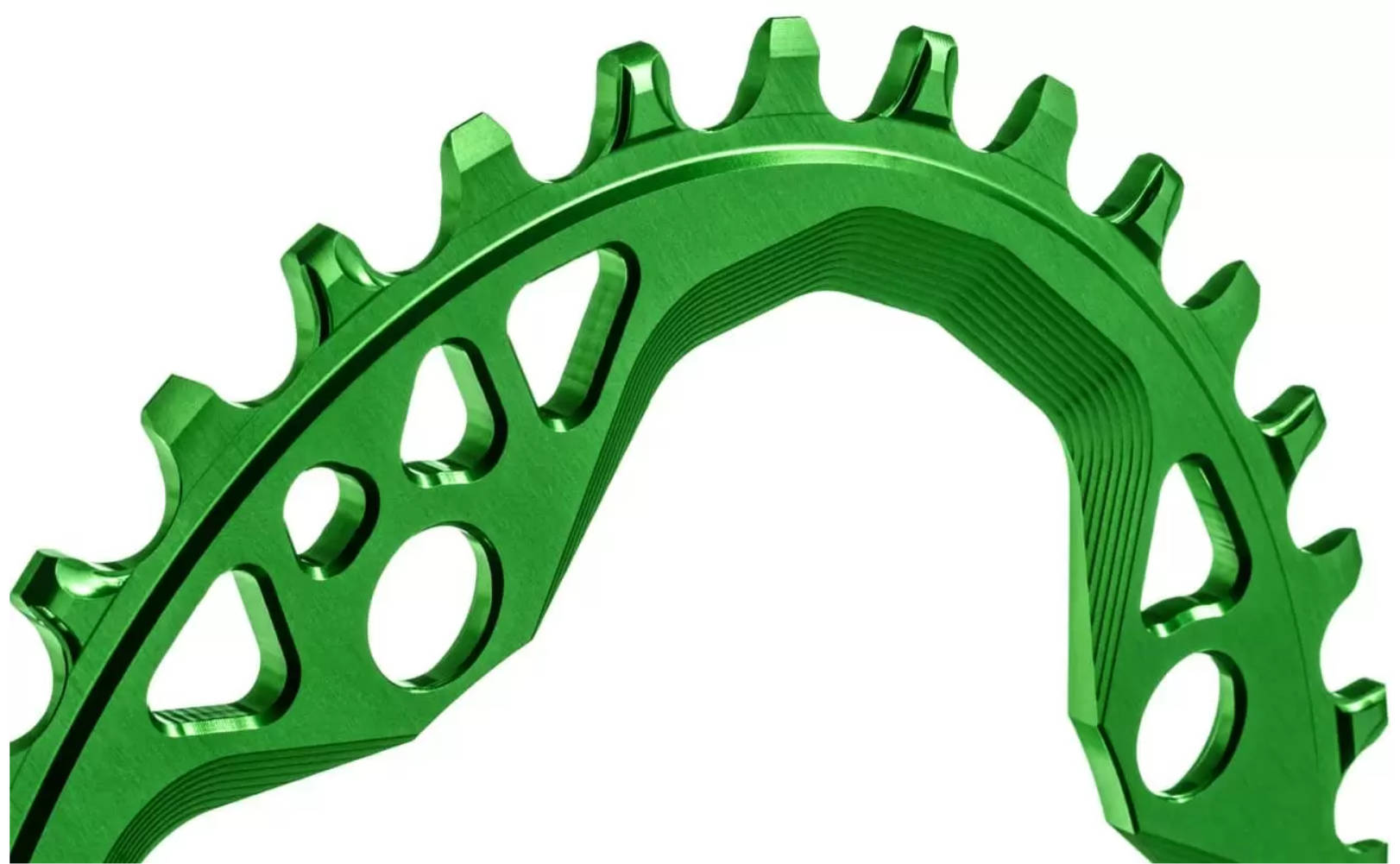

*Special 3D teeth machining for ultimate mud relief decrease wear and noise dramatically

*Superb quality and great look.

*You will ride faster using ovals. If you keep using round ring then others will get quicker.

*You will not “feel” the oval shape at all

*Reduces stress on knees

HOW TO MOUNT 104BCD ABSOLUTEBLACK OVAL NARROW WIDE CHAINRING:

There is a small mark (triangle shaped) on the inner circumference of the chainring.

This mark Must sit behind the crank arm.

In 28T oval there is a dimple instead of the triangle mark. That dimple must align with the crank arm and Must be visible to you when mounting the chainring (recesses on the mounting holes face the crank tabs).

DON’T KNOW WHAT BOLTS TO USE WITH 32T OVAL CHAINRING WITH INTEGRATED THREADS?

They are standard bolts. You can use a granny ring bolts (from 64bcd chainring) or use the ones that connect middle and big ring from 3X crank. You can also buy them from us in Bolts tab. Pick “Long” ones. Other sizes like 34 and 36T use “short” bolts.

It is ideal for 1x 9/10/11/12spd and Singlespeeds. Oval (elliptical) narrow wide chainring does not compromise the work of clutch mechanism in rear derailleur. It also does not require chain tensioner when using in singlespeed application. Riding out of saddle on the uphill will become more pleasant. These chainrings also help you to recover after knee injuries as pedaling becomes smoother and less exhausting. It is the most advanced oval chainring currently on the market.

The most advanced, Patent Pending narrow/wide tooth profile ever produced, guarantee minimum 12 months of excellent chain retention capabilities! We mean it. Always use a new chain with a new chainring.

• Chain options

  10, 11 or 12spd chain for geared bike or 6-8 spd one for SS (1/8″ also fits). If used in 1×9 drivetrain – 10spd chain must be used to obtain the performance. (yes – 10spd chain will work great on 9spd cassette)

• Chainguide needed?

  No. But if you want one then chain guide should have 2 teeth more capacity than nominal oval ring size.
